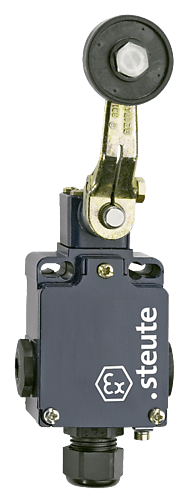

EX 355 4V3H 1Ö/1S

Ex position switch with safety function

Material number: 1179072
(Material number old: 92023301)

• Ex zone 1 and 21
• Metal enclosure
• Mounting and switching details to EN 50041
• Wiring compartment
• 3 cable entries
• Actuator: Long rocking lever 4V3H
• Actuating speed max. 2.5 m/s with a vertical actuating angle of 30°
• Wear-resistant plastic roller
• Lever angle adjustable in 10° steps
• Actuator can be repositioned by 4 x 90°
• N.B.: Please state required international approvals with your order!

Contact diagram

Switching diagram
