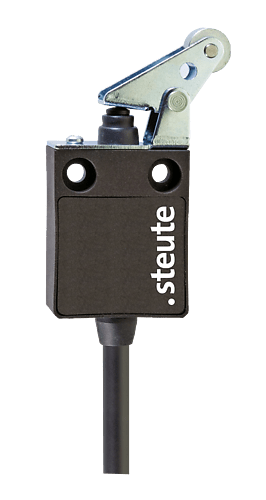

ES 13 WPH 1Ö/1S - 5M

Position switch with safety function

Material number: 1188935
(Material number old: 13020007)

• Thermoplastic enclosure
• Double insulated
• Suitable for in-line mounting
• With pre-wired cable, cable length 5 m
• Actuator: Parallel roller lever with collar WPH
• Actuating speed max. 0.5 m/s with an actuating angle of 30°
• Actuation parallel to switch from below
• Metal roller
• Watertight collar for protection against penetration of dirt

Notes

• Actuator can be repositioned by 180° on request
• With plastic roller available on request
