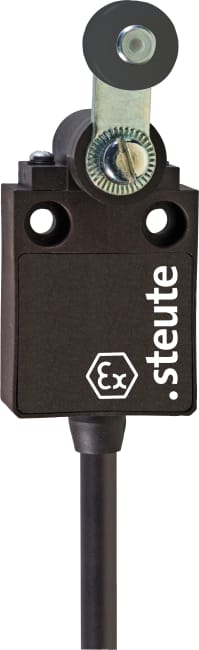

EX 13 D 1Ö/1S - 5M

Ex position switch with safety function

Material number: 1052253
(Material number old: 13021913)

• Ex zone 1 and 21
• Thermoplastic enclosure
• Double insulated
• Suitable for in-line mounting
• With pre-wired cable, cable length 5 m
• Actuator: Rocking lever D
• Actuating speed max. 0.5 m/s with a vertical actuating angle of 45°
• Wear-resistant plastic roller
• Lever can be repositioned in 10° steps clockwise or counter-clockwise
• Actuator can be repositioned by 180°
• N.B.: Please state required international approvals with your order!

Note

• With metal roller available on request

Contact diagram

Switching diagram
