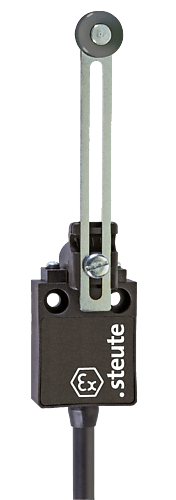

EX 13 DS 1Ö/1S - 10M

Ex position switch

Material number: 1045197
(Material number old: 13029904)

• Ex zone 1 and 21
• Thermoplastic enclosure
• Double insulated
• Suitable for in-line mounting
• With pre-wired cable, cable length 10 m
• Actuator: Adjustable rocking lever DS
• Actuating speed max. 0.5 m/s with a vertical actuating angle of 45°
• Wear-resistant plastic roller
• Lever can be repositioned in 10° steps clockwise or counter-clockwise
• Actuator can be repositioned by 180°
• N.B.: Please state required international approvals with your order!

Note

• With metal roller available on request

Switching diagram

Contact diagram
