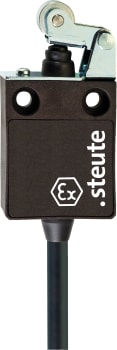

EX 13 WH 1Ö/1S - 2M

Ex position switch with safety function

Material number: 1045100
(Material number old: 13014902)

• Ex zone 1 and 21
• Thermoplastic enclosure
• Double insulated
• Suitable for in-line mounting
• With pre-wired cable, cable length 2 m
• Actuator: Roller lever with collar WH
• Actuating speed max. 0.5 m/s with a vertical actuating angle
  of α = 40° and β = 25°
• Metal roller
• Watertight collar for protection against penetration of dirt
• N.B.: Please state required international approvals with your order!

Notes

• Actuation from the left should be avoided since this reduces the mechanical life of the position switch.
• Actuator can be repositioned by 180° on request
• With plastic roller available on request

Switching diagram

Contact diagram

Actuating angles

α - Actuating angle from right of switch axis
β - Actuating angle from left of switch axis as shown in picture
