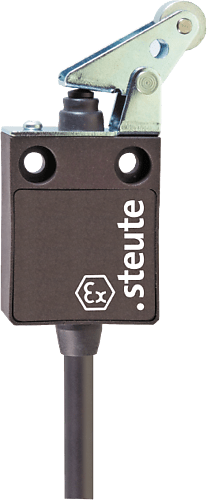

EX 13 WPH 1Ö/1S - 10M

Ex position switch with safety function

Material number: 1045167
(Material number old: 13020906)

• Ex zone 1 and 21
• Thermoplastic enclosure
• Double insulated
• Suitable for in-line mounting
• With pre-wired cable, cable length 10 m
• Actuator: Parallel roller lever with collar WPH
• Actuating speed max. 0.5 m/s with an actuating angle of 30°
• Actuation parallel to switch from below
• Metal roller
• Watertight collar for protection against penetration of dirt
• N.B.: Please state required international approvals with your order!

Notes

• With plastic roller available on request
• Actuator can be repositioned by 180° on request

Switching diagram

Contact diagram

Actuating angleα - Actuating angle from bottom of switch axis as shown in picture
