RC 23 1S - 2m kabel

Produktnummer: 1188642
Lagerbeholdning:

ekskl. mva.

Magnetbryter -60°C ... +100°C IP69K Extreme (gammelt art.nr: 22329208)

Magnetbryter -60°C ... +100°C IP69K Extreme (gammelt art.nr: 22329208)

RC 23 1S - 2M -60°C ... +100°C IP69 EXTREME

Magnetic sensor Extreme

Material number: 1188642
(Material number old: 22329208)

  • Temperature resistant from -60 °C to +100 °C
  • High degree of protection IP 69, IP 69K
  • Metal enclosure
  • M12 x 1 thread
  • Long life
  • 1 Reed contact
  • Actuation from front and from side
  • Switching distance up to 30 mm depending on the actuating magnet
  • With pre-wired cable
  • Temperature resistant cable
  • N.B.: Please state required international approvals with your order!

Notes

  • 2 mounting nuts are included in delivery
  • The actuator is not included in the delivery of the switches

Contact diagram

Directive for the protection of reed contacts

Oprinnelses land Tyskland
HS kode 85365080

M 300 N

Gammelt art.nr: 05.00.8209 Aktuator for magnetsensorer
1042617

M 300 S

Gammelt art.nr: 05.00.8210 Aktuator for magnetsensorer
1042618

M 400 UB

Gammelt art.nr: 01.24.0026 Aktuator for magnetsensorer
1033982

Magnet M 100 NU

Gammelt art.nr: 01.24.0005 Aktuator for magnetsensorer
1033966

Magnet M 200 N

Gammelt art.nr:05.00.8202 Aktuator for magnetsensorer
1042610

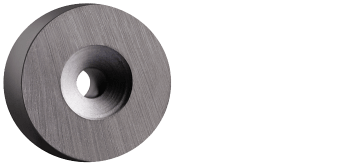

Magnet M 300 NU

Gammelt art.nr: 01.24.0007 Aktuator for magnetsensorer
1033968

Magnet M 50 NU

Gammelt art.nr: 01.24.0004 Aktuator for magnetsensorer
1033965

Magnet M 700 N

Gammelt art.nr: 05.00.8204 Aktuator for magnetsensorer
1042612
