RC 23 1W-5M

Magnetic sensor

Material number: 1045856
(Material number old: 22330501)

• Metal enclosure
• Long life
• 1 Reed contact
• Actuation from front and from side
• Switching distance up to 30 mm depending on the actuating magnet
• With pre-wired cable

Notes

• 2 mounting nuts are included in delivery
• The actuator is not included in the delivery of the switches

Contact diagram

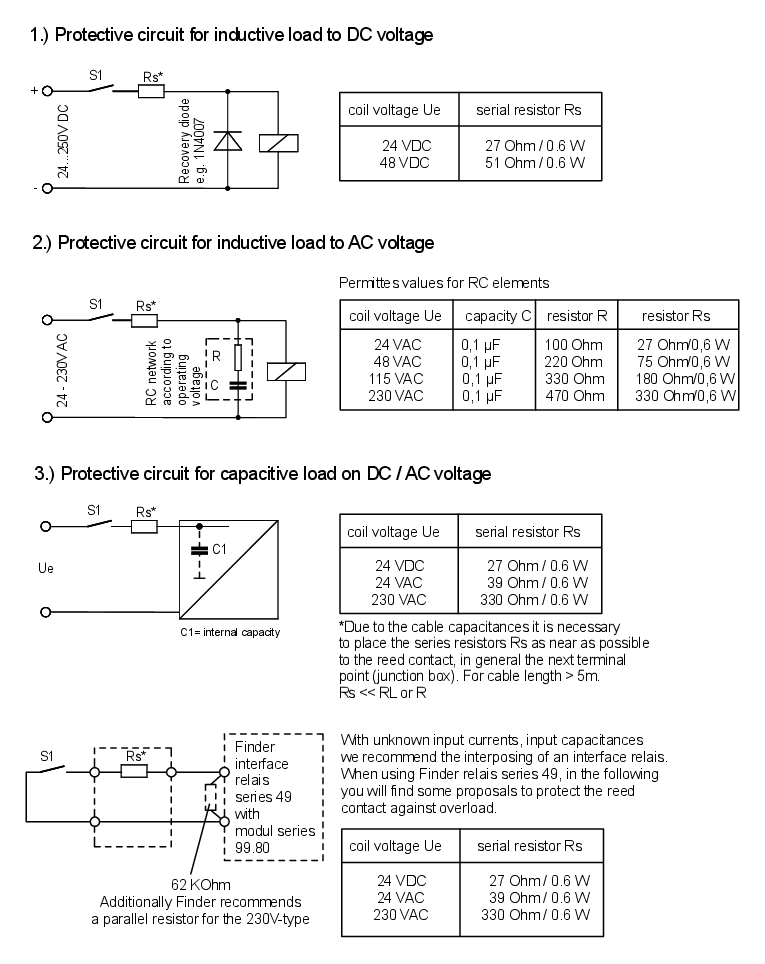

Directive for the protection of reed contacts
