Universal omformer med bipolar mA/V utgang. inng.: mV. mA. TC. RTD. potensiometer. rheostat

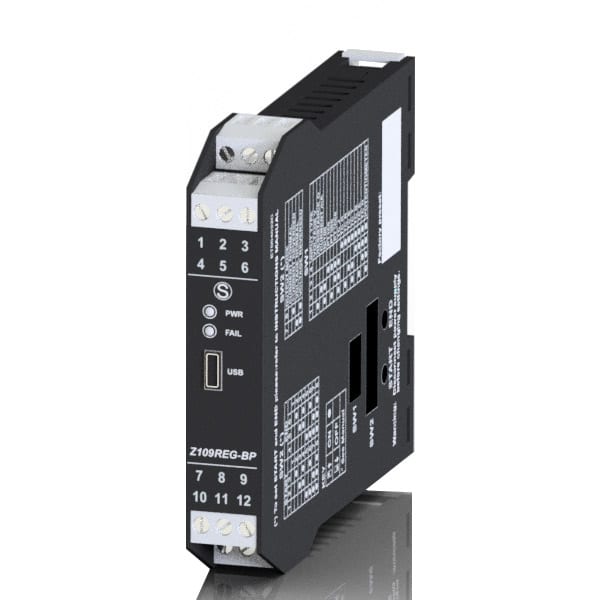

Z109REG-BP is a signal converter with universal input:

• voltage (mV)
• current (mA)
• thermocouples TC
• thermoresistances RTD
• potentiometer
• rheostat
• NTC.

The module offers measurement and re-transmission on isolated analog bipolar output, with voltage output. By DIP-switch are selectable: type of input (start-end), output mode (zero elevation, scale inversion), output voltage type (mA or V). Through mini USB front connector, Z109REG-BP can be programmed by PC: start-end scale, additional input types, square root extraction, filter, burn-out etc.
