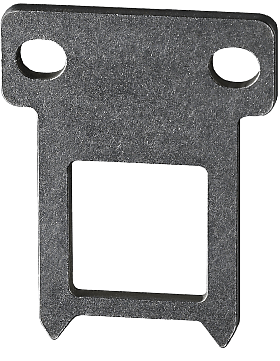

STRAIGHT ACTUATOR STM 295-B1

Accessories for STM 295 / Ex STM 295

Material number: 1183481
(Material number old: 04.95.1233)

• Stainless steel 1.4301
• Actuating radius on hinged guards a = 350 mm and b = 700 mm
• Axial misalignment x = 11 mm

Note

• 3 slot sealing plugs are included in delivery

The axis of the hinge should be x mm above the top edge
of the safety switch and in the same plane.
a = Actuating radius to the plane of the actuator
b = Actuating radius in line with the plane of the actuator
x = Axial misalignment
