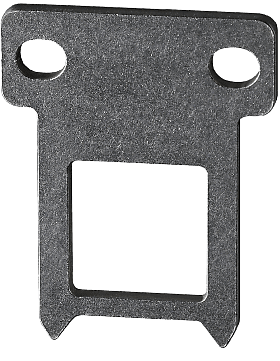

ANGLED ACTUATOR STM 295-B5

Accessories for STM 295 / Ex STM 295

Material number: 1183470
(Material number old: 04.95.1234)

• Stainless steel 1.4301
• Especially suitable for hinged guards
• Actuating radius on hinged guards a = 350 mm and b = 700 mm
• Axial misalignment x = 13.5 mm

Note

• 3 slot sealing plugs are included in delivery
