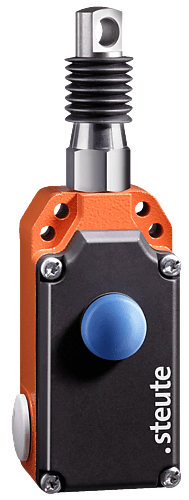

ZS 71 2Ö/1S WVD / 100 N

Emergency pull-wire switch

Material number: 1185001
(Material number old: 71942904)

• Metal enclosure
• 3 contacts
• Small design
• Wire length up to 35 m
• Spring force variant: 100 N
• Release by push-button (VD)
• Wire pull and breakage detection
• Watertight collar W for protection against penetration of dirt

Note

• At 3 m distance intermediate wire supports are required. One wire thimble is provided.

Switching diagram

Contact diagram
