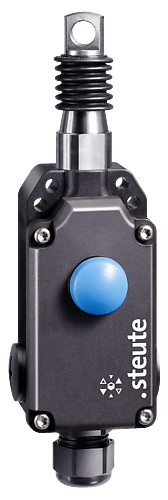

ZS 71 2Ö/1S WVD / 100N KST IP69 NIRO EXTREME

Emergency pull-wire switch Extreme

Material number: 1189534
(Material number old: 71942914)

• Version with higher degree of protection IP 69: suitable for cleaning with 80 °C hot water at 100 bar pressure at a distance of 100 mm from different directions
• Pull-wire unit and screws made of stainless steel 1.4305 (NIRO)
• Thermoplastic enclosure
• 3 contacts
• Small design
• Wire length up to 35 m
• Release by push-button (VD)
• Watertight collar W for protection against penetration of dirt
• Wire pull and breakage detection
• Attention: Please state required international approvals with your order!

Notes

• 1 cable gland M20x1.5 - IP 69 included in delivery
• At 3 m distance intermediate wire supports are required. One wire thimble is provided.
