ZS 92 S 22 VD F1 KST -40°C+85°C Extreme
Produktnummer: 1493781
Lagerbeholdning:
ekskl. mva.
IP66/67 Nødstopp snortrekkbryter i Extrem serien laget i kunsstoff (KST)
IP66/67 Nødstopp snortrekkbryter i Extrem serien laget i kunsstoff (KST)
ZS 92 S 22 VD F1 KST -40°C+70°C IP66/67 EXTREME
ZS 92 S 22 VD F1 KST -40°C+70°C IP66/67 EXTREME

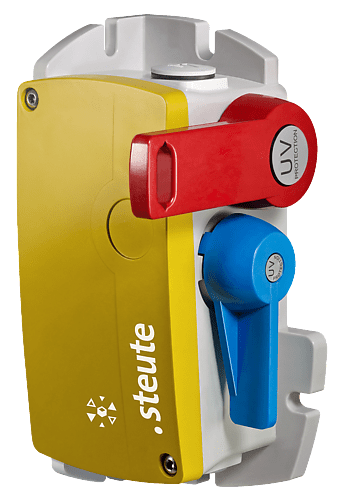

Emergency pull-wire switch Extreme
Material number: 1493781
- Temperature resistant from -40 °C to +70 °C
- High degree of protection IP 66 / IP 67
- Thermoset enclosure
- Screws made of stainless steel
- Wire length up to 2 x 100 m
- Release by lever
- F1 = blue reset lever on front side (left)
- Back and base mounting possible
- Wire pull and breakage detection
Note
- At 3 m distance intermediate wire supports are required. Two compensation springs type ZS 90/91/92 S must be installed, see accessories.
Switching diagram
Latching point
Wire breakage detection
Wire pull detection
Contact diagram
Type F1
| Oprinnelses land | Tyskland |
| HS kode | 85365080 |
| Vekt | 2340.0 g |
