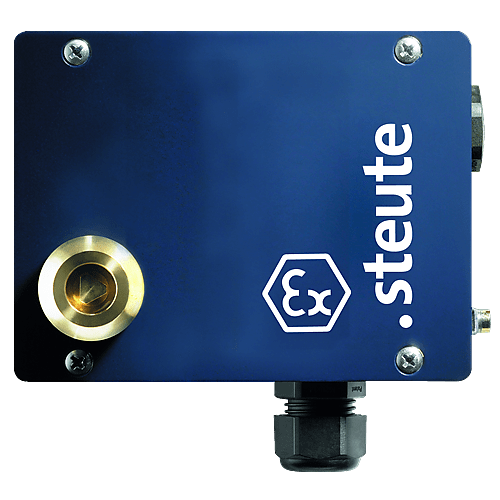

EX AZM 415 1Ö1S/1Ö1S R-FE

Ex solenoid interlock

Material number: 1181881
(Material number old: 94353306)

• Ex zone 1 and 21
• Spring-to-lock principle
• Problem-free opening of stressed doors by means of bell-crank system
• High locking force 3500 N
• Ball catch
• Wiring compartment
• With auxiliary unlocking for service, maintenance, etc.
• Unlocking with M5 triangular key
• Attention: Please state required international approvals with your order!

Notes

• The actuator is not included in the delivery of the switches
• 1 additional cable gland M20x1.5 is included in delivery

Contact diagram

 positive break
 actuated
 not actuated
 monitoring of the guard-lock to EN ISO 14119

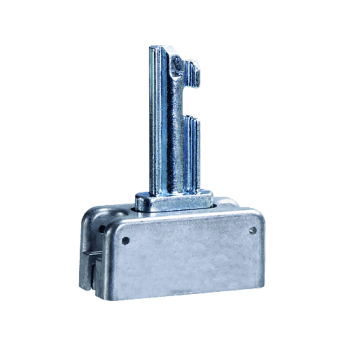

Tilbehør til Ex AZM 415
